All-electric

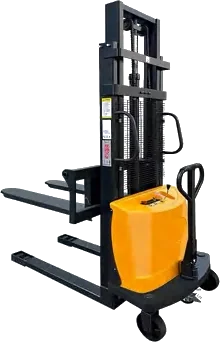

All-Electric Roll Handling Stacker
All-electric lifting, travel and roll handling stacker for production areas.
- Load capacity
- 500 kg
- Lift height
- 2.0 m
- Roll diameter
- 360–720 mm
ROLL HANDLING EQUIPMENT
Move Rolls Without Pallets.
Clamp. Lift. Rotate. Load.
Electric roll handling systems engineered for film, paper, foil, fabric, cable and other cylindrical materials.
Up to 1000 kg360° rotationPallet-free handling
PROBLEM / SOLUTION
Handling Heavy Rolls Should Not Depend on Manual Work
Core capability: clamp, lift, rotate or tilt, transport and precisely position cylindrical materials—including rolls, drums, barrels, reels and spools.
Standard forklifts, pallets and manual re-orientation add handling steps, roll damage risk and operator exposure. DUBHE combines clamping, lifting, transport, rotation and machine-side alignment in one controlled cycle.
- Clamp
- Lift
- Transport
- Rotate
- Align
- Load
Products
Six product platforms for real roll-handling workflows

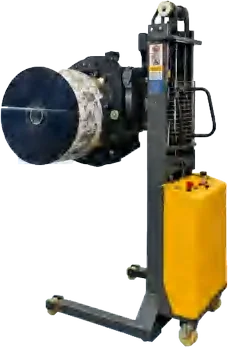

Manual travel
EY-JPD 360° Rotating Forklift
Manual travel, electric lifting and hydraulic 360° rotation for compact machine-side roll handling.
- Load capacity
- 350 kg
- Lift height
- 1500 mm
- Roll diameter
- 360–800 mm
All-electric
EY-JPD All-Electric 360° Rotating Forklift
Powered travel, electric lifting and powered 360° rotation for frequent production cycles.
- Load capacity
- 500 kg
- Lift height
- 2.0 m
- Roll diameter
- 360–720 mm

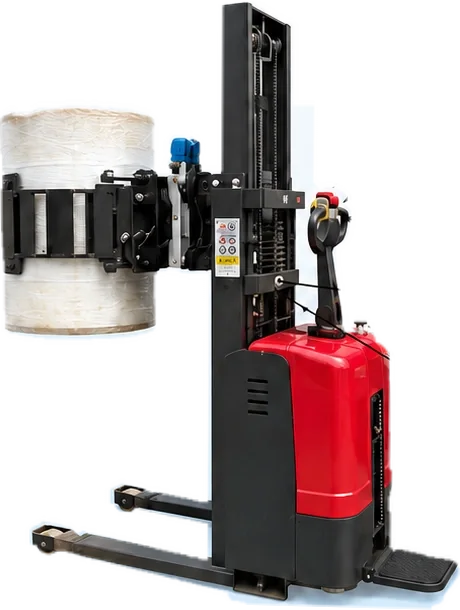

Standing electric
EY-CPD-JB Standing Electric Clamp Forklift
Standing electric platform engineered with a matched mast, chassis and clamp for heavier rolls and higher lift.
- Load capacity
- 300–1000 kg
- Lift height
- 2.0 / 2.5 / 3.0 m
- Roll diameter
- Φ300–1000 mm custom
All-electric
Semi-Electric Lift Truck
Semi-electric lift truck for standard roll transfer and machine-side positioning.
- Load capacity
- 800 kg
- Lift height
- 1.5 m
- Roll diameter
- Within 950 mm
Manual travel

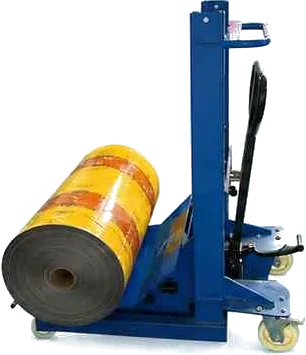

Manual Hydraulic Vehicle
Manual hydraulic vehicle for economical short-distance roll handling.
- Load capacity
- 800 kg
- Lift height
- 0.9 / 1.2 / 1.5 m
- Roll diameter
- Within 950 mm
Which Roll Handler Fits Your Operation?
Travel modeManual pushPowered travelStanding electric
Load capacity350 kg500 kg300-1000 kg custom
Operating frequencyIntermittentFrequentHeavy / long route
Rotation360° hydraulicPowered 360°Optional powered 360°
ENGINEERING METHOD
Engineered Around the Roll - Not Just the Forklift
Roll material, weight, diameter, width, core, surface sensitivity, pickup orientation, loading height, aisle and machine interface determine the configuration.
One roll. One workflow. One engineered configuration.Built and Tested for Real Production
Engineering, fabrication, assembly, electrical integration, clamp testing, load testing, rotation testing, packing and shipment are managed as one delivery process.
