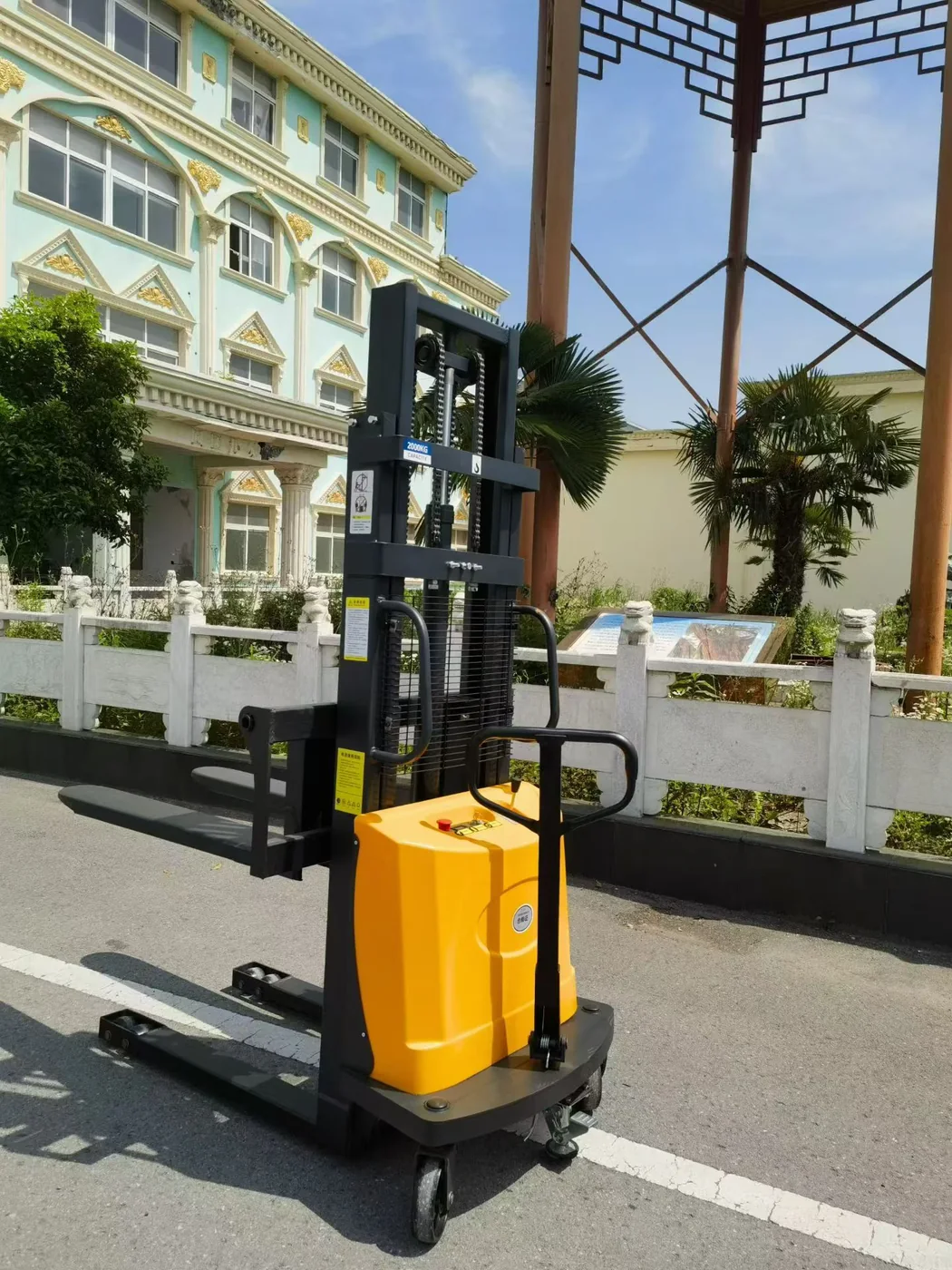

Semi-Automated
Walkie electric stacker without standing platform.
CapacityUp to 2000 kg
Lift HeightUp to 4000 mm
OperationPedestrian
Products / Pallet Handling
PalletHandling
Electric stackers for warehouse and material flow, with walkie and stand-on configurations, multiple control modes, and multiple power options.
Control & Configuration
Two illustrated operating configurations.
Series data comes directly from the brochure.

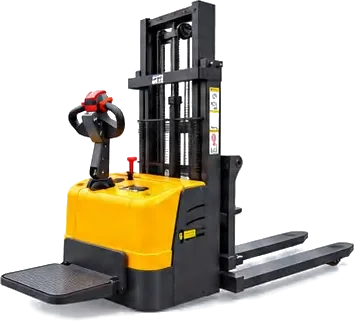

Fully Automated
Stacker with stand-on platform for high-efficiency handling.
CapacityUp to 2000 kg
Lift HeightUp to 4000 mm
OperationStand-on platform
The labels above reproduce the brochure terminology for the illustrated configurations.
Series Range
Typical specifications and control choices.
| Item | Series Specification |
|---|---|
| Capacity | Up to 2000 kg |
| Lift Height | Up to 4000 mm |
| Fork Length | 1100 mm |
| Operation Type | Walkie / Ride-on |
| Power | Battery / Tethered / Generator-Assisted |
| Drive | Electric |
Control Modes
Semi-AutomatedAssisted operation
Fully AutomatedHigher productivity
Remote-ControlledFlexible position
Power Options
Real Factory & Handling
Production, inventory and loading.
Real images selected from the Google Drive factory media.
Pallet Loading Demonstration
Real operating footage used as an application demonstration.
Product View
Factory product image from the media library.
Tell us your pallet-handling task.
Share the load, lifting height, pallet size and site constraints.
Selection guide
Choose pallet handling from the real material flow
Pallet handling is relevant across manufacturing, warehousing and transport when goods must be moved, loaded or unloaded, lifted or stacked. Confirm pallet compatibility, fork access, lift height, aisle width, route, floor and gradient before selecting a configuration.
Nearby, level work
Assisted handling suits short, flat and clear routes close to a loading point or machine, where a person can push the equipment.
Warehouse route or slope
For frequent transfer, a longer route or a slope, select powered travel with verified traction, braking, parking, duty cycle and loading conditions.
Remote loading tasks
Remote operation may be evaluated for restricted, hot, cold, enclosed or centrally monitored loading areas when the approved functions and safeguards are defined.
Power choice: battery supports short flexible routes in non-hazardous areas; tethered cable suits close, fixed and repeatable work zones; generator-assisted power may be assessed for routes beyond about 500 m. The power source alone does not determine hazardous-area suitability.
Read the full task, travel and power selection guide →
