Manual Hydraulic Vehicle
Simple mechanical lifting and handling for horizontal rolls.
Load capacity800 kg
Max roll diameter950 mm
Lifting height0.9 / 1.2 / 1.5 m
Vehicle size1.15 × 0.6 m
Products / Horizontal Roll Handling
Horizontal RollHandling
Two models for horizontal roll movement, lifting and machine-side positioning: manual hydraulic and semi-electric.
Configuration Options
Manual hydraulic · Semi-electric
Choose between manual hydraulic handling and electric lifting with manual positioning.

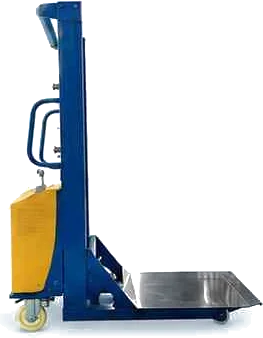

Semi-Electric Lift Truck
Electric lifting with simple manual positioning for daily handling tasks.
Load capacity800 kg
Roll diameterWithin 950 mm
Lifting height1.5 m
Battery12 V / 80 Ah
Comparison
Compare the two models.
| Item | Manual hydraulic | Semi-electric |
|---|---|---|
| Typical use | Basic handling | Daily handling |
| Load capacity | 800 kg | 800 kg |
| Roll diameter | 950 mm | Within 950 mm |
| Lifting height | 0.9 / 1.2 / 1.5 m | 1.5 m |
| Power | — | 12 V / 80 Ah |
Discuss your horizontal-roll task.
Share the roll weight, diameter, width, lifting height and line-side layout.
Selection guide
Keep the roll horizontal when the task requires support
Horizontal roll handling is for compatible cylindrical rolls that should remain horizontal while being supported, transferred, height-adjusted or positioned at a machine. Confirm the support interface, roll dimensions, centre of gravity and hand-off height before choosing a configuration.
Short, level machine-side work
Assisted handling is appropriate where a person can push the equipment nearby on a clear, flat floor; the handling function may still be powered.
Frequent transfer or a gradient
For longer workshop movement, high frequency or slopes, select powered travel only after traction, braking, parking, duty cycle and route conditions are verified.
Restricted operating position
Remote operation can be evaluated where work is hazardous, enclosed, unusually hot or cold, or requires central supervision and defined emergency safeguards.
Power choice: battery supports flexible short routes in non-hazardous areas; tethered cable can suit a close, fixed transfer path and some crane-replacement tasks; generator-assisted power may be assessed beyond about 500 m. Hazardous-area suitability requires a complete certified solution.
Read the full task, travel and power selection guide →
