Compact 360°
Electric lifting and 360° rotation.
Capacity350 kg
Roll Ø360–720 mm
Lift height1.5 m
Rotation360°
Battery12 V / 80 Ah
Products / Roll Clamp Forklifts
Roll ClampForklifts
Designed for cylindrical rolls. Three illustrated configurations cover compact electric lifting and rotation, all-electric travel/lifting/rotation, and stand-on hydraulic clamping with electric travel.
Three Configurations
Choose by task, movement and working style.
Parameters below are for the illustrated brochure configurations. Custom items are marked accordingly.
All-Electric 360°
Electric travel, lifting and 360° rotation.
Capacity500 kg
Roll Ø360–720 mm
Lift height2.0 m
Rotation360°
Battery24 V

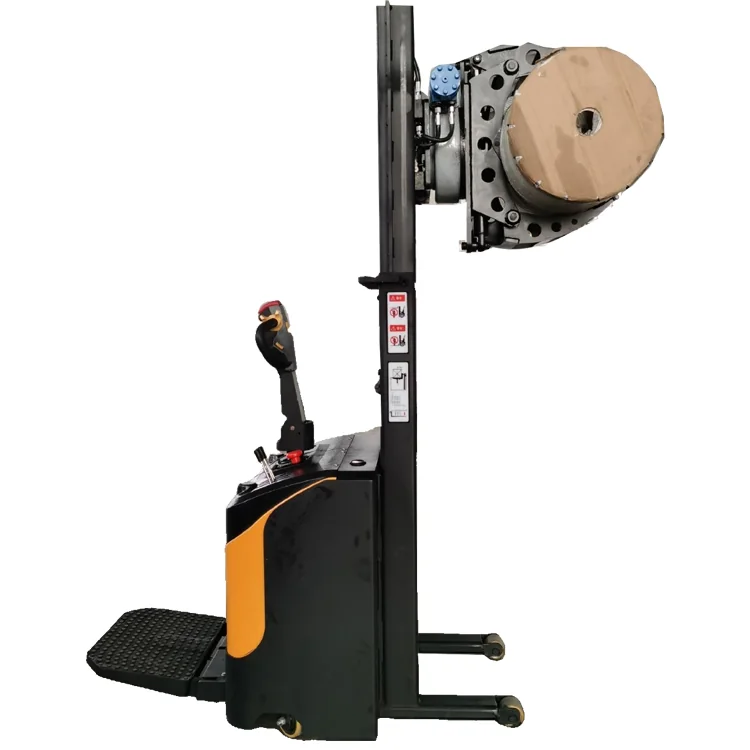

Stand-On · EY-CPD-JB
Hydraulic clamping and electric travel.
Capacity300–1000 kg*
Clamp Ø300–1000 mm*
Lift height2.0 / 2.5 / 3.0 m
RotationOptional 360°
Battery24 V / 240 Ah
* Custom. Parameters shown are for the illustrated configurations.
Control & Power
Operation options and power options.
Options vary by model and application.
Operation Options
Semi-AutomatedAssisted handling
Fully AutomatedProgrammed workflows
Remote-ControlledTablet / smartphone
Interface illustration.
Power Options
Real Operation
See the handling actions.
Real demonstration footage from the Google Drive media library.
Lifting & Rotation
Demonstration of roll lifting and rotation.
Grip, Tilt & Transport
Demonstration of clamping and roll movement.
Typical Handling Tasks
Built around cylindrical loads.

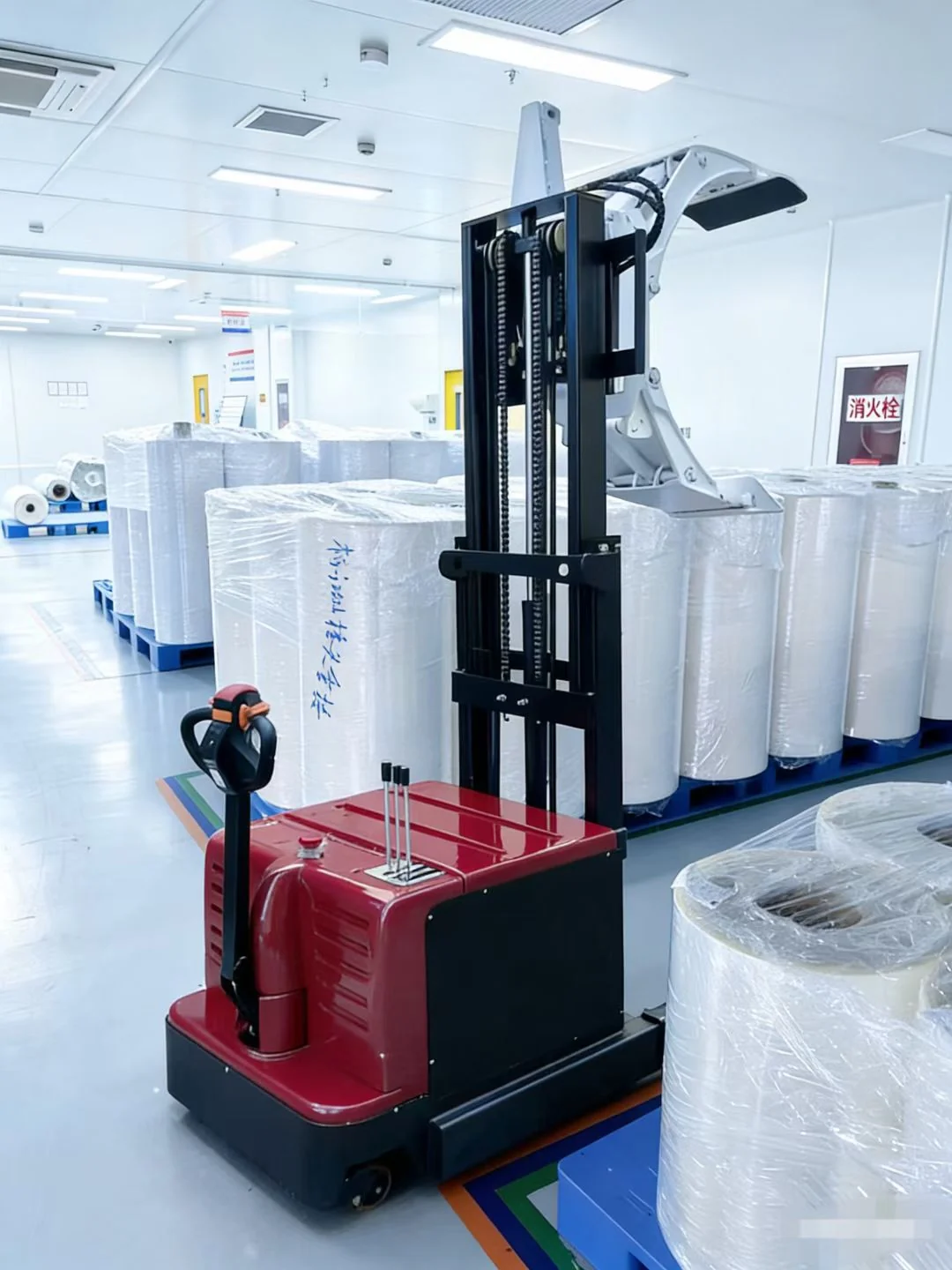

Film RollsRoll handling around converting and storage.
Paper RollsCylindrical roll lifting and movement.
Fabric RollsClamp and transport suitable cylindrical loads.
Cable CoilsFor similar cylindrical load forms.
Tell us your handling task.
Share the material type, weight and dimensions, plus a photo or video of the application.
Selection guide
Choose roll handling by the task
Roll clamp forklifts are selected by load shape and handling action, not by industry alone. They can serve any sector that handles compatible cylindrical rolls once the roll surface, diameter, weight and permitted clamping pressure are confirmed.
Close to the machine
Choose assisted handling when a person can push the equipment over a short, level and clear route; lifting, clamping or rotation may still be powered.
Longer route or slope
Choose powered travel for more frequent warehouse or workshop transfer, or a route with a slope. Verify traction, braking, parking, duty cycle and the actual travel path.
Remote or restricted area
Evaluate remote operation for hazardous, enclosed, hot, cold or centrally monitored work. Define approved remote functions, visibility, communications and emergency stop for the project.
Power choice: battery suits short, flexible non-hazardous routes with a charging plan; tethered cable suits close, fixed and repeatable work zones; generator-assisted power may be assessed for routes beyond about 500 m. A power source alone does not establish hazardous-area suitability.
Read the full task, travel and power selection guide →
